NAS1453 Eyelets
- NAS1453-2-064T
- Eyelet, Metallic, Funnel type, Electrical, .030 OD, .064 L, Copper, Tin plate, for 1/32 thick PCB
- NAS1453-3-095G
- Eyelet, Metallic, Funnel type, Electrical, .047 OD, .095 L, Copper, Gold plate, for 1/16 thick PCB
- NAS1453-6-127S
- Eyelet, Metallic, Funnel type, Electrical, .090 OD, .127 L, Copper, Solder electro-plate, for 3/32 thick PCB

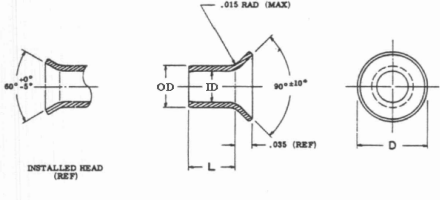

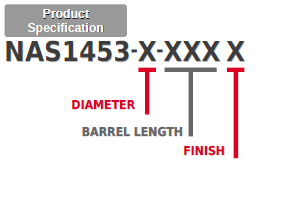

| Product Specification | Diameter code | OD | ID | Flange (D) | Barrel length code (L) | Barrel length | Circuit board thickness | Finish code | Finish name |
|---|---|---|---|---|---|---|---|---|---|
| NAS1453 | 2 | 0.030 | 0.020 | 0.059 | 064 | 0.064 | 1/32 (0.031) | T | Tin Plated |
| 3 | 0.047 | 0.035 | 0.080 | 095 | 0.095 | 1/16 (0.062) | G | Gold Plated | |
| 4 | 0.060 | 0.042 | 0.100 | 127 | 0.127 | 3/32 (0.093) | S | Solder Electro-Plated | |
| 6 | 0.090 | 0.067 | 0.150 | 158 | 0.158 | 1/8 (0.125) |
- TOLERANCES SHALL BE MET PRIOR TO PLATING.
- DIMENSIONS IN INCHES.
| Revision | [1] Date: 05/31/12 |
| Description | Eyelet, metallic, electrical, printed circuit board, funnel type |
| Keywords | Eyelet, NAS1453 |
| Applications |
|
