NAS76 Spacer Sleeves & Bushings

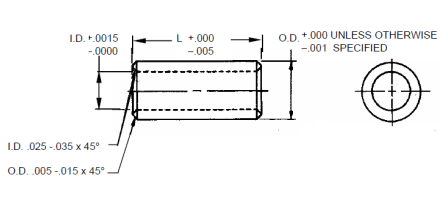

NAS76 Drawing

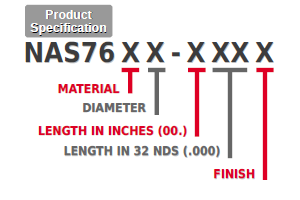

NAS76 Diagram
NAS76A8-314
BUSHING, PLAIN, .5000 ID, .6265 OD, 3.4375 L, ALUMINUM BRONZE, NO FINISH
NAS76A7-009P
BUSHING, PLAIN, .4375 ID, .5638 OD, 0.2813 L, ALUMINUM BRONZE, CADMIUM PLATE, CLEAR COLOR
NAS76B9-108N
BUSHING, PLAIN, .5625 ID, .6892 OD, 1.2500 L, BERYLLIUM COPPER, CADMIUM PLATE OD, NO FINISH ID
Show example part numbers

Product SpecificationMaterial
code
Material
name
Diameter
code
IDODLength in inches
code (L)
Length in inches
value
Length in 32nds
code (L)
Length in 32nds
value
Finish
code
Finish
name
NAS76AAluminum Bronze33/16 (0.1900)0.31361 - 51.000 - 5.00000-320/32 (x.000) - 31/32 (x.969)PCadmium Plated
BBeryllium Copper41/4 (0.2500)0.3761Longer lengths availableNNo plating inside, Cadmium outside
55/16 (0.3125)0.4386No codeUnplated
63/8 (0.3750)0.5013
77/16 (0.4375)0.5638
81/2 (0.5000)0.6265
99/16 (0.5625)0.6892
105/8 (0.6250)0.8142
1111/16 (0.6875)0.8767
123/4 (0.7500)0.9393
147/8 (0.8750)1.0648
161/1 (1.0000)1.1898
189/8 (1.125)1.3148
205/4 (1.250)1.4399
  1. All dimensions to be met after plating.
  2. ID and OD to be concentric within 0.03 full indicator movement.
  3. Dimensions in inches. Angular tolerance +5 degree.
  4. These bushings are not intended for reaming on assembly, however, reaming is permissible if required.
  5. Surface texture 125 micro-inch RHR or better per ANSI B46.1.
  6. Cadmium plated aluminum bronze bushings color dyed yellow or black may be used until depletion of stock.
Revision [9] Date: 06/10/10
Description Bushing-plain press fit, copper & bronze
Keywords Spacer Sleeve, Bushing, NAS76
