Products    >    NAS1830

NAS1830 Standoffs & Spacers

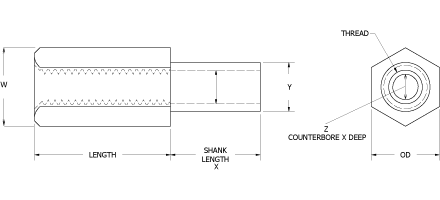

NAS1830 Drawing
NAS1830 Diagram
NAS1830BT11A03
SWAGE STANDOFF, 5/32 HX x 0.188 L, 0.075 SHANK L, 2-56, BR, BRITE TIN
NAS1830A03B05
SWAGE STANDOFF, 1/4 HX x 0.313 L, 0.105 SHANK L, 4-40, AL, CLEAR ANODIZE
NAS1830-01A04
SWAGE STANDOFF, 5/32 HX x 0.250 L, 0.075 SHANK L, 2-56, STL, CAD II
Show example part numbers

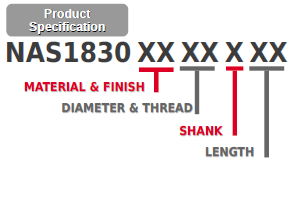

Product SpecificationMaterial & Finish
code
Material & Finish
name
Diameter & Thread
code
WYZStyleThreadShank
code
Shank
length (X)
Board thicknessLength
code (L)
Length
value
NAS1830AAluminum Alloy, Anodic coated015/32 (0.156)0.1250.098Hex.0860-56UNC-2BA0.0751/32 (0.031)02-802/16 (0.125) - 80/16 (5.000)
ACAluminum Alloy, Chemical Conversion023/16 (0.188)0.1390.109Hex.0860-56UNC-2BB0.1051/16 (0.062)Longer lengths available
BBrass, Cadmium Plated031/4 (0.250)0.1880.150Hex.1120-40UNC-2BC0.1353/32 (0.093)
BTBrass, Tin Plated041/4 (0.250)0.1880.150Hex.1380-32UNC-2BD0.1651/8 (0.125)
CCorrosion Resistant Steel, Passivated115/32 (0.156)0.1250.098Round.0860-56UNC-2B
-Steel, Cadmium Plated123/16 (0.188)0.1390.109Round.0860-56UNC-2B
131/4 (0.250)0.1880.150Round.1120-40UNC-2B
141/4 (0.250)0.1880.150Round.1380-32UNC-2B
  1. Dimensions are in inches.
  2. Threads per MIL-S-7742, Class 2B (UNC or UNF). Countersink for thread relief to maximum major thread diameter + 0.020 - 0.000.
  3. Post shall show no visible cracks after swaging.
  4. Break all sharp edges.
Revision [2] Date: 03/30/12
Description Post, electrical-mechanical equipment, swage type
Keywords Spacer, Standoff, NAS1830
Applications
  • Electronics
  • Aviation
  • Civil
  • Military
