NAS1057 Spacer Sleeves & Bushings

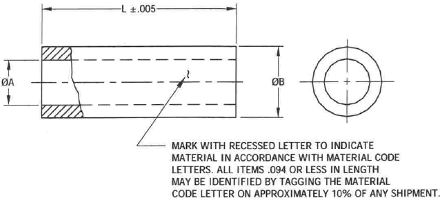

NAS1057 Drawing
NAS1057 Diagram
NAS1057T6-142
SPACER, 1/2 (0.500) OD, 0.380 ID, 1.420L, SS, 303, PASSIVATE, STAMP 'T', QQ-P-35
NAS1057W1-042
SPACER, 1/4 (0.250) OD, 0.146 ID, 0.420L, SS, A286, PASSIVATE, STAMP 'W', QQ-P-35
NAS1057X1A-019
SPACER, 5/16 (0.312) OD, 0.146 ID, 0.190L, INCONEL 'X', AMS 5668, STAMP 'X'
Show example part numbers

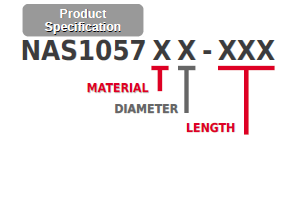

Product SpecificationMaterial
code
Material
name
Diameter
code
Screw or Bolt diameterODIDLength
code (L)
Length
value
NAS1057TCres 303, 303SE, 30400.1123/16 (0.188)0.117002 - 5000.020 - 5.000
WCres A28610.1381/4 (0.250)0.146Longer lengths available
XInconel 'X'1A0.1385/16 (0.312)0.146
1B0.1383/8 (0.375)0.146
3A3/16 (0.190)1/4 (0.250)0.198
33/16 (0.190)5/16 (0.312)0.198
3B3/16 (0.190)1/2 (0.500)0.198
41/4 (0.250)3/8 (0.375)0.259
4A1/4 (0.250)1/2 (0.500)0.259
55/16 (0.3125)7/16 (0.438)0.325
63/8 (0.375)1/2 (0.500)0.379
77/16 (0.4375)9/16 (0.563)0.456
81/2 (0.500)5/8 (0.625)0.518
99/16 (0.5625)11/16 (0.687)0.581
105/8 (0.625)3/4 (0.750)0.644
123/4 (0.750)7/8 (0.875)0.769
147/8 (0.875)1/1 (1.000)0.895
161/1 (1.000)9/8 (1.125)1.020
  1. TEMPERATURE LIMITATIONS: 800°F-303 Se 304 CRES; 1200°F-A286 CRES; 1500°F-INCONEL 'X'
  2. MAGNETIC PERMEABILITY: MAGNETIC PERMEABILITY SHALL BE LESS THAN 2.0 (AIR=1.0) FOR A FIELD STRENGTH H=200 OERSTEDS, (MAGNETIC PERMEABILITY INDICATOR PER ASTM A342, METHOD 6 OR EQUIVALENT)
  3. DIMENSIONS IN INCHES.
  4. REMOVE ALL SHARP EDGES AND BURRS.
  5. SURFACE ROUGHNESS IN ACCORDANCE WITH ANSI/ASME B46.1. UNLESS OTHERWISE SPECIFIED, THE SURFACE ROUGHNESS SHALL NOT EXCEED 125 MICROINCHES.
Revision [9] Date: 01/28/11
Description Spacer, sleeve-screw and bolt, high temperature, non magnetic
Keywords Spacer Sleeve, Bushing, NAS1057
Applications
  • Electronics
  • Aviation
  • Civil
  • Military
Back to top
PHOTOS
NAS1057 Thumbnail
CERTIFICATIONS
  • DFARS
  • Certificate of Compliance
  • Material
  • Finish
  • other on request
