NAS1056 Spacer Sleeves & Bushings

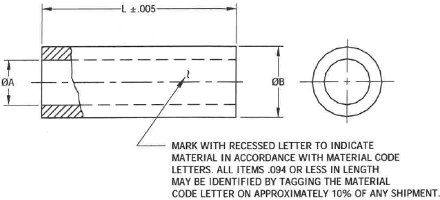

NAS1056 Drawing
NAS1056 Diagram
NAS1056C4-038
SPACER, 1/4 (0.250) OD, 0.130 ID, 0.380L, SS, 303, PASSIVATE, STAMP 'C', QQ-P-35
NAS1056E6-057
SPACER, 3/8 (0.375) OD, 0.193 ID, 0.570L, SS, A286, PASSIVATE, STAMP 'E', QQ-P-35
NAS1056E3-064
SPACER, 3/16 (0.188) OD, 0.100 ID, 0.640L, SS, A286, PASSIVATE, STAMP 'E', QQ-P-35
Show example part numbers

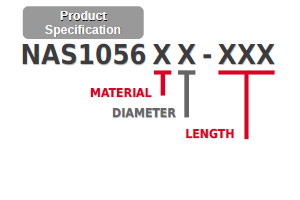

Product SpecificationMaterial
code
Material
name
Diameter
code
Rivet diameterODIDLength
code (L)
Length
value
NAS1056CCres 303, 303SE, 30433/32 (0.094)3/16 (0.188)0.099002 - 5000.020 - 5.000
ECres A2864A1/8 (0.125)3/16 (0.188)0.130Longer lengths available
KInconel 'X'41/8 (0.125)1/4 (0.250)0.130
55/32 (0.156)5/16 (0.312)0.163
6A3/16 (0.188)1/4 (0.250)0.193
63/16 (0.188)3/8 (0.375)0.193
81/4 (0.250)7/16 (0.438)0.259
105/16 (0.312)9/16 (0.563)0.318
12A3/8 (0.375)9/16 (0.562)0.379
123/8 (0.375)5/8 (0.625)0.379
  1. TEMPERATURE LIMITATIONS: 800°F-303,303 Se AND 304 CRES; 1200°F-A286 CRES; 1500°F-INCONEL 'X'
  2. MAGNETIC PERMEABILITY: MAGNETIC PERMEABILITY SHALL BE LESS THAN 2.0.(AIR=10)FOR A FIELD STRENGTH H-200 OERSTEDS.(MAGNERTIC PERMEABILITY INDICATOR PER ASTM A342, METHOD 6 OR EOUIVALENT)
  3. DIMENSION IN INCHES.
  4. REMOVE ALL SHARP EDGES AND BURRS
  5. SURFACE ROUGHNESS IN ACCORDANCE WITH ANSI/ASME B46.1. UNLESS OTHERWISE SPECIFIED, THE SURFACE ROUGHNESS SHALL NOT EXCEED 125 MICROINCHES
Revision [7] Date: 08/31/10
Description Spacer, sleeve-rivet, high temperature, non magnetic
Keywords Spacer Sleeve, Bushing, NAS1056
